In equilibrium physics, an object is in equilibrium when the net force and the net torque acting on it are both zero, so it has no linear or angular acceleration. This gives two conditions — ΣF = 0 (balanced forces) and Στ = 0 (balanced turning effects) — meaning the object stays at rest or moves at constant velocity.
Lean a ladder against a wall and climb it. Rest a coffee cup on a table. Watch a suspension bridge carry rush-hour traffic without so much as a wobble. In every one of these scenes, something holds perfectly still while forces pull and push on it from several directions at once.
That stillness is not luck — it is a balance. Physics gives it a precise name and, remarkably, just two short rules that decide whether any object, from a bookshelf to a skyscraper, stays put or comes crashing down.
What Is Equilibrium in Physics?
Picture a tug-of-war that has ground to a stalemate. Both teams heave with everything they have, the rope is taut, and yet the flag in the middle does not budge. Plenty of force is being applied — it simply cancels out.
That is the heart of equilibrium: not the absence of forces, but their perfect balance. An object is in equilibrium when every force and every turning effect acting on it adds up to nothing.
More precisely, a body is in equilibrium when two things are true at the same time. The net force on it is zero, so it does not speed up or slow down in any direction. And the net torque on it is zero, so it does not start to spin.
Put those together and the object has zero acceleration — both linear and rotational. By Newton’s reasoning, that means it either sits at rest or keeps moving in a straight line at a steady speed. Equilibrium is really the special, balanced case of Newton’s laws of motion, seen through the lens of “nothing is changing.”
The Two Conditions for Equilibrium
Every equilibrium problem you will ever meet rests on the same two equations. The first handles straight-line balance; the second handles rotational balance. Master both and you can analyse a hanging sign or a loaded bridge with the same toolkit.
First condition — translational equilibrium
The forces must cancel. Added together as vectors, they come to zero.
In two dimensions this splits into one equation for each direction, which is how you actually solve problems:
- ΣF — the vector sum of all forces acting on the object, measured in newtons (N).
- ΣFx, ΣFy — the sums of the horizontal (x) and vertical (y) force components, each in newtons (N). In three dimensions you add ΣFz = 0.
Second condition — rotational equilibrium
The turning effects must cancel too. The sum of all torques about any chosen axis is zero.
Each individual torque comes from a force applied at some distance from the pivot:
- Στ — the sum of all torques (moments) about the pivot, measured in newton-metres (N·m).
- τ — the torque from a single force, in newton-metres (N·m).
- r — the distance from the pivot to the point where the force acts, in metres (m).
- F — the applied force, in newtons (N).
- θ — the angle between the force and the line from the pivot, in degrees or radians.
A neat feature of the second condition: it holds about any axis you like. If the torques balance about one point, they balance about every point — so you can pick the pivot that makes the algebra easiest, usually one where an unknown force disappears.
When you need each turning effect quickly, you can work out the individual torques with our Torque Calculator and then set their sum to zero.
How Equilibrium Works: Forces and Torques in Balance
So how do you go from a messy real object to two tidy equations? The trick every physicist uses is a free-body diagram — a stripped-down sketch showing only the object and the forces on it, as arrows.
Consider a shop sign hanging from two cables. Three forces act on it: its weight pulling straight down, and a tension pulling up along each cable. Draw those three arrows and the balance becomes visible.

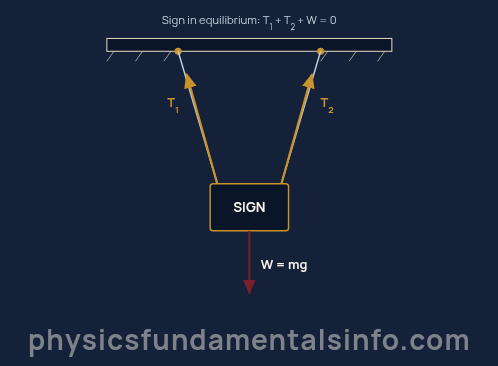

A free-body diagram of a hanging sign. The two upward cable tensions balance the downward weight, so the net force is zero.
Now apply the two conditions. Vertically, the upward pull of the cables must equal the weight, so the sign does not fall or rise. Horizontally, the two cables lean symmetrically, so their sideways pulls cancel. Rotationally, the pulls are arranged so there is no leftover twist. Balance achieved.
The recipe generalises to any problem. First isolate the object and draw every force. Then write ΣFx = 0 and ΣFy = 0. Then, if the object could You are left with algebra — and usually just enough equations to find every unknown. The worked scenarios at HyperPhysics: Force Equilibrium Examples let you test this recipe across several cable-and-weight setups.
Try it yourself below. Slide the masses along the beam and watch the turning effects fight for balance; the beam only sits level when the torques on each side match.
Static vs Dynamic Equilibrium
Here is where most students trip. Equilibrium does not mean “not moving.” It means “not accelerating.” Those are different things, and the gap between them defines two flavours of equilibrium.
Static equilibrium is the familiar one: the object is at rest and stays at rest. A book on a desk, a parked car, the foundations of a house — all motionless, all with forces perfectly cancelled.
Dynamic equilibrium is the sneaky one: the object moves, but at a constant velocity, so it still is not accelerating. A skydiver who has reached terminal velocity is falling fast — yet air resistance now exactly balances gravity, the net force is zero, and the speed holds steady. That is equilibrium in motion.
A cruise ship steaming across calm water at a fixed 20 knots is in dynamic equilibrium too: the engine thrust balances the drag of the water. In practice, the test is always the same — check for acceleration, not for motion.
| Feature | Static equilibrium | Dynamic equilibrium |
|---|---|---|
| Motion | At rest (velocity = 0) | Moving at constant velocity |
| Acceleration | Zero | Zero |
| Net force | ΣF = 0 | ΣF = 0 |
| Everyday example | A cup resting on a table | A skydiver at terminal velocity |
Types of Equilibrium: Stable, Unstable and Neutral
Two objects can both be perfectly balanced right now and yet behave completely differently the moment you nudge them. That difference — how a body responds to a small disturbance — sorts equilibrium into three types.

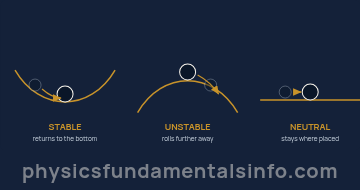

Stable, unstable and neutral equilibrium, shown by a ball on a valley, a dome and a flat surface.
Stable equilibrium. Nudge the object and it returns. Think of a ball in a bowl: push it up the side and gravity rolls it straight back to the bottom. Its centre of gravity sits at a low point, so any disturbance raises it and it falls back down.
Unstable equilibrium. Nudge it and it runs away. A ball balanced on top of a dome, or a pencil stood on its point, is poised for an instant — then the slightest push sends it rolling off, because the centre of gravity is at a high point and wants to drop.
Neutral equilibrium. Nudge it and it simply stays put in its new spot. A ball on a flat table, or a wheel lying on its side, rolls to a new position that is just as balanced as the last. Its centre of gravity stays at the same height.
This is also why a pendulum swings the way it does: it oscillates around a stable equilibrium point at the bottom of its arc, always pulled back toward balance. If that idea interests you, our guide to simple harmonic motion follows the same restoring force further.
| Type | After a small push | Centre of gravity | Everyday example |
|---|---|---|---|
| Stable | Returns to its original position | At a low point (rises if displaced) | A cone resting on its base; a low sports car |
| Unstable | Moves further from its position | At a high point (falls if displaced) | A cone on its tip; a pencil on its point |
| Neutral | Stays in the new position | Stays at the same height | A cone on its side; a ball on a flat floor |
Real-World Examples of Equilibrium
Equilibrium is not a textbook abstraction — it is the reason the built world stays standing. Here are four cases where the two conditions do quiet, constant work.
A book on a table
The simplest example there is. Gravity pulls the book down; the table pushes back up with an equal normal force. Two forces, cancelled, and the book does not move — textbook static equilibrium.
A suspension bridge
At every tower and anchor, enormous cable tension is balanced against the deck’s weight and the pull of the roadway. Engineers size every cable so that ΣF = 0 and Στ = 0 hold under the heaviest expected traffic — the bridge is a permanent equilibrium calculation made of steel.
A tightrope walker
A performer on a wire is a live balancing act in the literal sense. The long pole lowers the centre of gravity and increases rotational inertia, giving more time to correct any small torque before it topples them. Every tiny lean is a torque, answered by an equal and opposite one.
A crane lifting a load
A tower crane hoisting a steel beam looks precarious but is precisely balanced. A heavy counterweight on the short arm produces a torque about the mast that matches the torque from the load on the long arm — Στ = 0 keeps the whole machine from tipping.
Common Misconceptions About Equilibrium Physics
A handful of stubborn myths trip up students every year. Clear these and equilibrium problems get noticeably easier.
“Equilibrium means no forces are acting”
Wrong — and it is the big one. Equilibrium means the forces balance, not that they vanish. The book on the table has two substantial forces on it; they just cancel. A common slip is to draw a free-body diagram with no forces at all “because nothing is happening.”
“Equilibrium means the object is stationary”
Not necessarily. An object cruising at constant velocity is in dynamic equilibrium. The real requirement is zero acceleration, which motion at steady speed satisfies perfectly.
“Zero net force is enough”
Only for a point. For a real, extended object you also need zero net torque. Two equal, opposite forces offset from each other add to zero force yet still spin the object — a “couple.” Skip the second condition and your analysis is only half done.
“You must take torques about the pivot”
You are free to choose any axis. Since Στ = 0 holds about every point when a body is in equilibrium, the smart move is to pick an axis that passes through an unknown force, wiping it out of the equation.
How Equilibrium Relates to Newton’s Laws and Everyday Forces
Equilibrium is not a separate law bolted onto mechanics — it falls straight out of the laws you already know.
Start with Newton’s second law, ΣF = ma. Set the acceleration to zero and it collapses to ΣF = 0, the first equilibrium condition. Equilibrium is simply the a = 0 case of the second law, which is why it also matches Newton’s first law: no net force, no change in motion.
The forces you plug in are the everyday ones. Weight pulls down at the centre of gravity. Normal forces push perpendicular to surfaces. Friction resists sliding and is often the force that keeps a leaning ladder from slipping. Tension runs along ropes and cables. An equilibrium problem is really an exercise in identifying which of these act, then demanding that they balance.
Because torque enters through τ = r·F·sinθ, rotational equilibrium ties equilibrium to the whole study of rotation — levers, moments, centre of gravity and stability. That is the bridge between “why things don’t move” and “why things don’t topple.” For a rigorous treatment of both conditions with worked derivations, the treatment in OpenStax University Physics: Conditions for Static Equilibrium is an excellent companion.
