Bernoulli’s principle states that in a steadily flowing fluid, an increase in speed occurs together with a decrease in pressure or a drop in height. In equation form, static pressure plus dynamic pressure (½ρv²) plus hydrostatic pressure (ρgh) stays constant along a streamline for an incompressible, low-friction flow.
Hold a strip of paper just below your lip and blow hard across its top. The strip does not flatten — it rises to meet the moving air, as if lifted by nothing at all.
That small mystery scales up spectacularly. The same physics helps hold a 400-tonne airliner in the sky, once fed petrol into every carburettor engine, and lets a perfume bottle turn liquid into mist. This guide unpacks how it works, where it applies — and, just as importantly, where it does not.
What Is Bernoulli’s Principle?
Picture water moving through a garden hose. Squeeze the end and the same amount of water must pass through a smaller opening every second, so it speeds up. Bernoulli’s principle answers the follow-up question most people never think to ask: what happens to the pressure?
The answer surprises almost everyone. Where the fluid moves faster, its pressure is lower — not higher. Where it moves slower, the pressure is higher.
Stated precisely: for a steady, incompressible flow with negligible friction, the sum of static pressure, kinetic energy per unit volume and gravitational potential energy per unit volume stays constant along a streamline. A streamline is simply the path a tiny parcel of fluid traces through the flow.
The idea comes from the Swiss mathematician Daniel Bernoulli, who published it in his 1738 book Hydrodynamica. The tidy equation we write today was set down soon afterwards by his colleague Leonhard Euler — but the name stuck to Bernoulli, and it has held for nearly three centuries.
The Bernoulli Equation
The whole principle compresses into a single line:
Every symbol has a precise meaning and an SI unit:
- P — static pressure of the fluid, in pascals (Pa)
- ρ (rho) — density of the fluid, in kilograms per cubic metre (kg/m³)
- v — flow speed at that point, in metres per second (m/s)
- g — gravitational field strength, approximately 9.81 m/s² on Earth
- h — height above a chosen reference level, in metres (m)
Each of the three terms is an energy per unit volume, in joules per cubic metre — which works out to exactly the same unit as pressure, the pascal. That is no coincidence. Bernoulli’s equation is conservation of energy, written out for each cubic metre of moving fluid.
| Term | Name | What it represents | Grows when… |
|---|---|---|---|
| P | Static pressure | The squeeze the fluid exerts on its surroundings | The fluid is pushed on harder |
| ½ρv² | Dynamic pressure | Kinetic energy packed into each cubic metre | The flow speeds up |
| ρgh | Hydrostatic term | Gravitational potential energy per cubic metre | The fluid sits higher up |
To compare two points along the same streamline, write the constant out twice:
One partner equation almost always joins it. The continuity equation says what flows in must flow out, so for an incompressible fluid the cross-sectional area times the speed stays fixed:
Continuity tells you how fast; Bernoulli tells you at what pressure. Nearly every exam problem uses the pair together. If you would rather skip the algebra, plug your numbers straight into our Bernoulli Equation Calculator and get the result in one step. NASA’s Glenn Research Center keeps a clear reference on the different forms of Bernoulli’s equation and the conditions attached to each one.
How Bernoulli’s Principle Works
Why should speeding up cost a fluid its pressure? The cleanest answer follows the energy.
Imagine a small parcel of water approaching a narrow section of pipe. The high-pressure fluid behind it pushes it forward — positive work done on the parcel. The lower-pressure fluid ahead pushes back, doing negative work. The push from behind wins, so the parcel accelerates into the constriction.
- The parcel moves from a wide, high-pressure region towards a narrow, low-pressure region.
- Net work done on it equals (pressure behind minus pressure ahead) × area × distance moved.
- By the work–energy theorem, that net work becomes extra kinetic energy — or potential energy, if the pipe climbs.
- Divide the whole ledger by the parcel’s volume, and the bookkeeping reads P + ½ρv² + ρgh = constant.
Notice the direction of cause and effect. The fluid does not speed up and then mysteriously lose pressure. A pressure difference already exists along the pipe, and that difference is the very force accelerating the fluid. High speed and low pressure arrive together because one is paid for by the other.
Georgia State University’s HyperPhysics puts it neatly: think of pressure as an energy density, and a constriction simply trades that energy for motion. For the full mathematical derivation — starting from the work–energy theorem and ending at the finished equation — OpenStax’s Bernoulli’s Equation chapter walks through every step with diagrams.

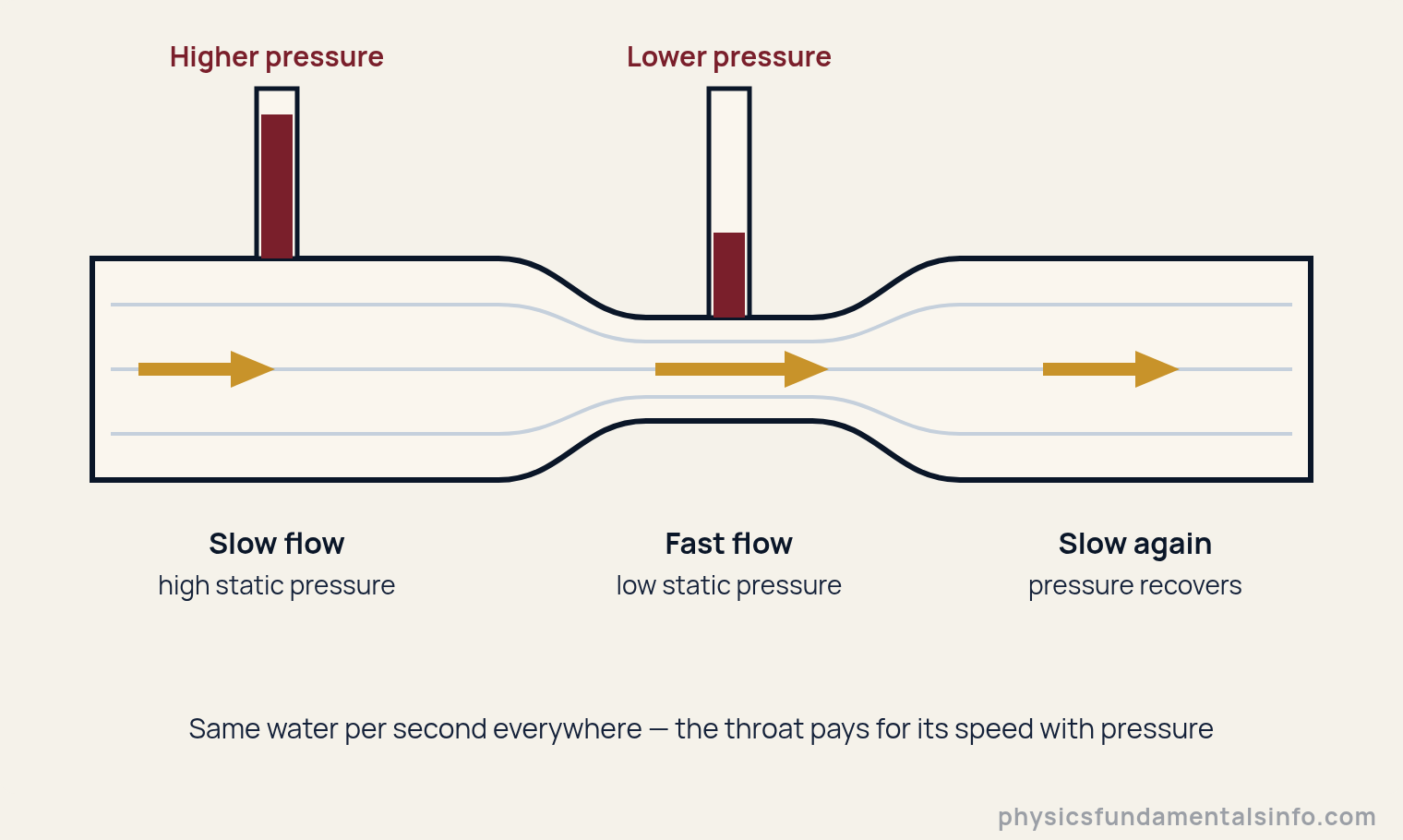

The Venturi effect: in the narrow throat the fluid moves faster and its static pressure falls — the manometer columns make the invisible visible.
Sliders beat words here. Squeeze the throat in the lab below and watch the speed jump and the pressure column drop in real time.
7 Real-World Applications of Bernoulli’s Principle
Once you know the signature — fast flow next to low pressure — you start spotting it everywhere. Here are seven places it earns its keep.
1. Aircraft wings
Air genuinely travels faster over the curved top of a lifting wing than beneath it, and measurements confirm the pressure up there is lower. Sum that pressure difference over the whole wing and you get a large upward force. The popular story of why the upper air is faster, however, is usually wrong — see the misconceptions below.
2. Atomisers and spray bottles
Squeezing the bulb of a perfume atomiser fires a fast air jet across the top of a thin tube. Pressure there drops below atmospheric, so ordinary air pressure inside the bottle pushes liquid up the tube and into the airstream, shredding it into mist.
3. Venturi meters and carburettors
A Venturi meter deliberately narrows a pipe and measures the pressure drop at the throat; that drop reveals the flow speed, so utilities can meter water or gas with no moving parts at all. Carburettors in older petrol engines ran on the same trick — the narrow throat lowers pressure just enough to draw fuel into the incoming air.
4. Pitot tubes on aircraft
An aircraft’s speedometer is really a pressure gauge. The pitot tube compares total pressure (a port facing straight into the flow, where air is brought to rest) with static pressure from side ports. The difference between them is the dynamic pressure ½ρv², and the airspeed follows directly.
5. Chimneys and prairie-dog burrows
Wind blowing across the top of a chimney lowers the pressure there and strengthens the upward draught. Prairie dogs exploit the same physics: one burrow entrance is built on a raised mound, wind moves faster over it, and the resulting pressure difference ventilates the tunnel with zero effort.
6. Curving balls in sport
A spinning football drags a thin layer of air around with it, so the airflow ends up faster on one side of the ball than the other. The faster side sits at lower pressure and the ball swerves towards it — the Magnus effect that bends a free kick around a defensive wall. Note that this one needs viscosity to grip the air, a reminder that real flows mix several effects.
7. Blood flow through narrowed arteries
Blood speeding through a constricted artery is a Venturi in miniature: pressure inside the narrowed section falls. In severe cases the surrounding pressure can briefly squash the vessel shut, then flow reopens it, over and over — the flutter behind some of the murmurs a doctor hears through a stethoscope.
| Application | The speed change | The pressure change | The payoff |
|---|---|---|---|
| Aircraft wing | Air faster over the top surface | Lower pressure above the wing | Lift |
| Atomiser | Air jet races over a tube | Pressure at the tube top drops | Liquid rises and turns to mist |
| Venturi meter / carburettor | Flow accelerates in the throat | Throat pressure falls | Flow rate measured; fuel drawn in |
| Pitot tube | Air brought to rest at the nose | Pressure rises by ½ρv² | Airspeed reading |
| Chimney / burrow | Wind speeds over the opening | Pressure at the top falls | Natural ventilation draught |
| Spinning ball | Air faster on one side | Sideways pressure imbalance | The ball curves in flight |
| Narrowed artery | Blood accelerates in the constriction | Pressure inside falls | Vascular flutter, audible murmur |
Common Misconceptions About Bernoulli’s Principle
Myth 1: “Air over the wing must catch up” — the equal-transit-time fallacy
The old textbook story claims air split at a wing’s leading edge must reunite at the trailing edge, forcing the top stream — with its longer path — to travel faster. It sounds plausible, and it is simply false. Wind-tunnel experiments show the two streams never reunite; the upper air typically reaches the trailing edge first.
The faster upper flow is real, but it comes from how the wing’s shape and angle of attack turn the entire flow field, not from any reunion appointment. NASA’s Glenn Research Center dissects this and the other incorrect theories of lift in detail. One quick sanity check: if equal transit time were the mechanism, aircraft could not fly upside down — and stunt pilots do it routinely.
Myth 2: “Bernoulli is wrong — lift is really Newton’s third law”
This one over-corrects. A wing does deflect air downward, and the reaction to that push is lift — perfectly true. But the pressure-difference account and the flow-turning account are two ledgers for the same transaction, and both give the right answer when applied properly. You do not have to pick a side.
Myth 3: “Moving air always has lower pressure than still air”
Bernoulli’s equation compares points along the same streamline, not any two parcels of air you fancy. The free jet from a hair dryer, for instance, sits at roughly the same atmospheric pressure as the room around it. Casually comparing a jet with unconnected still air — as many demo write-ups do — misuses the equation.
Myth 4: Mixing up static, dynamic and total pressure
“The pressure” is an ambiguous phrase in a moving fluid. Static pressure is the sideways squeeze the fluid exerts as it streams past; dynamic pressure ½ρv² is the extra you would register by bringing the flow to rest; their sum is the total pressure. Bernoulli says the total stays constant — it is the static share that falls as speed rises.
When Bernoulli’s Equation Breaks Down
Every clean equation carries small print. Bernoulli’s assumes four things, and real flows violate each of them somewhere.
- Steady flow. The flow pattern must not change from moment to moment. Turn a tap on suddenly, or peer inside churning turbulence, and the equation loses its footing.
- Incompressible fluid. Excellent for liquids, and fine for air below roughly 100 m/s — about a third of the speed of sound. Near the sound barrier, density changes and compressible-flow relations take over.
- Negligible viscosity. Internal friction converts flow energy into heat. In long narrow pipes, in honey, or inside the thin boundary layer hugging every surface, viscous losses dominate and Bernoulli alone will mislead you.
- Same streamline, no machines between. The two points compared must lie on one streamline, with no pump or turbine adding or removing energy in between.
Air resistance is the everyday reminder of that third point. Drag on a falling object is a viscous, turbulent affair, which is why terminal velocity needs its own treatment rather than a quick Bernoulli argument.
A practical habit worth stealing from engineers: apply Bernoulli first for the big picture, then ask which assumption your system bends, and correct for it. Real pipe design adds “head-loss” terms to the equation for exactly this reason.
How Bernoulli’s Principle Relates to Other Physics
Bernoulli’s equation is not new physics — it is familiar physics wearing fluid clothing. Spotting the family resemblance makes it far easier to remember.
The ½ρv² term is the kinetic energy formula ½mv² divided by volume, since density is just mass per volume. The ρgh term is gravitational potential energy mgh on the same per-volume diet. And pressure enters the ledger through the work one parcel of fluid does on the next.
Two neighbouring ideas deserve separating. Hydrostatic pressure in a still liquid (increasing by ρgh with depth) is Bernoulli with the speed terms switched off. Buoyancy comes from pressure differences with depth, not with speed — Archimedes and Bernoulli answer different questions.
Even projectile motion makes a cameo. The instant a jet of water leaves a hole in a tank, Bernoulli’s job is done and gravity’s begins, arcing the stream like any thrown ball. Torricelli’s theorem — exit speed v = √(2gh) — is nothing more than Bernoulli applied between the tank’s calm surface and the hole.

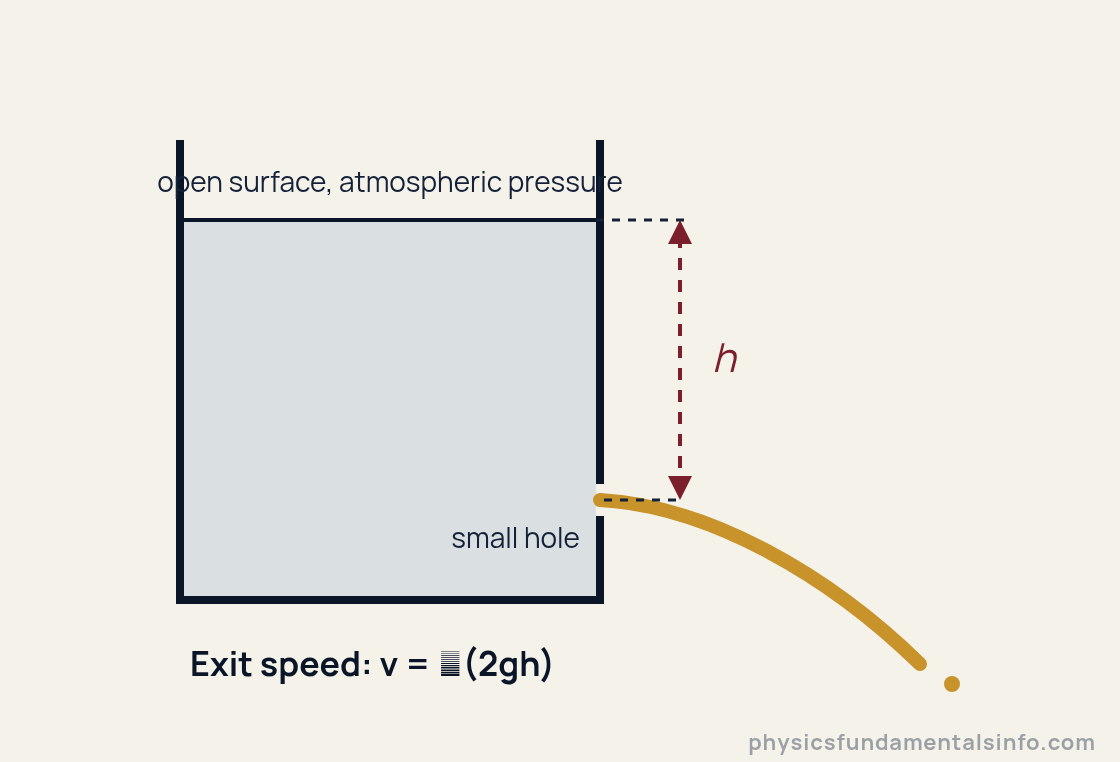

Torricelli’s theorem is Bernoulli between two points — the still surface and the jet at the hole. Depth alone sets the exit speed.
Worked Problems
Grab a calculator and work along — it is the fastest way to own this topic. Use ρ = 1000 kg/m³ for water and g = 9.81 m/s², and keep pressures in pascals until the final line.
