Viscosity Converter

What Is the Viscosity Converter?

How to convert kinematic and dynamic viscosity

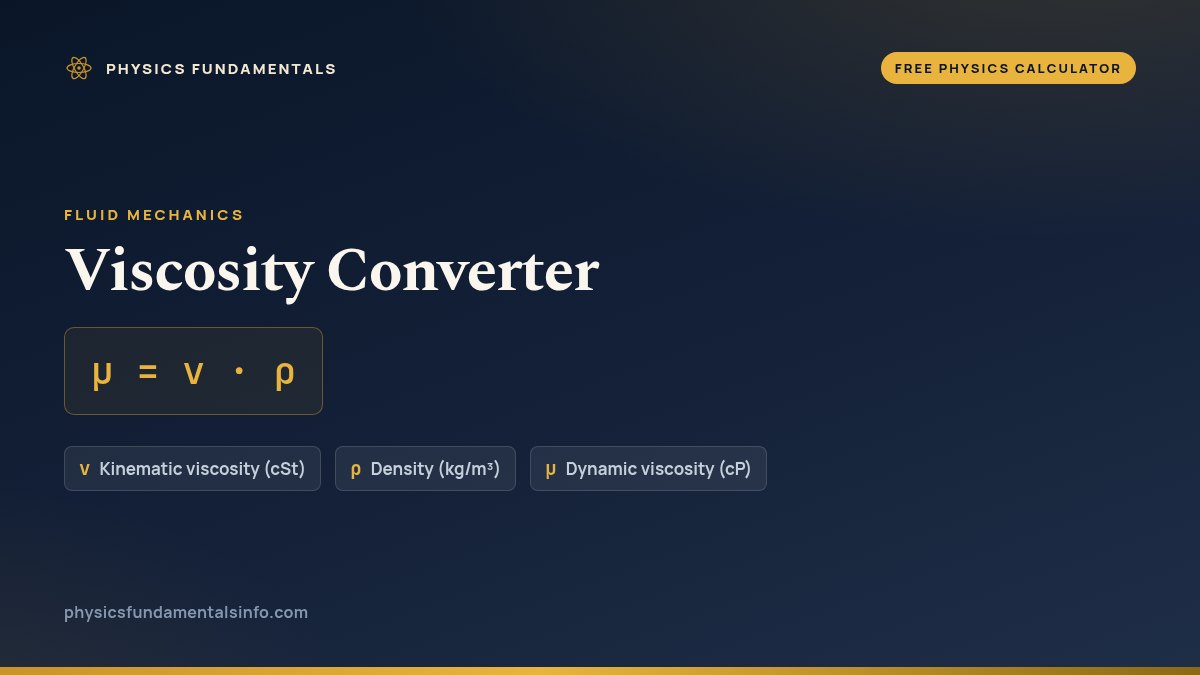

Dynamic viscosity is kinematic viscosity times density, μ = ν · ρ. This one relation lets you move freely between the two ways of measuring how a fluid resists flow. In SI, μ is in pascal-seconds (Pa·s) and ν in square metres per second (m²/s); in the common industrial units, 1 centipoise (cP) = 1 mPa·s and 1 centistokes (cSt) = 1 mm²/s. The density ρ is the bridge between them, so you always need it — or a value to solve for it.

Using the converter is simple: enter any two of the three quantities and read the third. Choose what you want in the Solve for menu, then type the values you know in whatever units suit you — the tool rescales everything to base SI, computes the answer, and shows the substituted formula step by step. To find a fluid's density first, use the density calculator; to see how viscosity feeds into pressure and flow speed, try the Bernoulli equation calculator.

Worked example

Water at 20 °C has a kinematic viscosity of about 1.0 cSt and a density of 1000 kg/m³. Its dynamic viscosity is μ = ν · ρ = 1.0×10-6 m²/s × 1000 kg/m³ = 1.0×10-3 Pa·s = 1.0 cP. Because water's density is about 1 g/cm³, its cSt and cP values come out almost equal — a handy sanity check whenever you convert between the two units.

Why it matters

Lubricant grades (engine oils, hydraulic fluids), pumping and pipeline design, coatings and food processing all specify viscosity, but instruments may report kinematic values (a flow cup) or dynamic values (a rotational viscometer). Converting between cSt and cP via density is therefore a daily task in engineering. The same fluid property governs how bodies move through a fluid — see the drag force calculator — and you can look up any unfamiliar term in the physics glossary.

Where the ideal viscosity conversion breaks down

The relation μ = ν · ρ is exact algebra, but only for one fluid at one temperature. Both μ and ρ fall as a liquid warms, and they fall at wildly different rates: water's dynamic viscosity drops by nearly half between 20 °C and 50 °C, while its density falls by about 1%. A kinematic viscosity quoted with no temperature therefore carries almost no information, and feeding the converter a hot ν with a cold ρ puts nearly all the error into μ. That is why petroleum practice pins the test to 40 °C and 100 °C. Check that the two numbers you typed were measured at the same temperature.

The converter also assumes a fluid has a single viscosity. That holds for Newtonian fluids — water, air, most light oils — where shear stress stays proportional to shear rate. It fails for paint, blood, ketchup, greases and polymer melts, whose apparent viscosity drops as you stir them harder (shear-thinning) or climbs (shear-thickening). For those there is no single μ to convert: a flow-cup reading and a rotational-viscometer reading sample different shear rates and will not agree however carefully you multiply by density. The arithmetic still runs; the answer describes a condition you never measured. You can watch that shear-rate dependence in the viscosity simulator.

Pressure is the third escape hatch. The density you look up is the atmospheric-pressure value, but squeeze a liquid hard and viscosity climbs far faster than density does — inside the loaded contact of a gear tooth or a rolling-element bearing, oil at hundreds of megapascals can be orders of magnitude thicker than it was in the bottle. Entrained air bubbles do the mirror image: they shift the bulk ρ while barely touching the molecular viscosity, so your measured ν and your weighed ρ describe two different mixtures.

Finally, the instruments. A gravity-driven capillary viscometer genuinely measures ν: gravity supplies a driving force proportional to density, so density cancels out — which is why kinematic viscosity, not dynamic, is the graded quantity in oil specifications. Flow cups are industrial correlations calibrated against those capillaries, not fundamental measurements, and they drift outside that range. And viscosities do not blend linearly: mix equal volumes of a 32 cSt and a 460 cSt oil and you will not get 246 cSt. Blending needs a logarithmic index; this converter handles one fluid in one state.

Where this is actually used

Specifying and pumping a lubricant. An SAE 30 grade oil runs around 100 cSt at 40 °C, and a typical mineral base oil has a density near 875 kg/m³. Solve for μ with those two inputs and the converter returns 0.0875 Pa·s, or 87.5 cP. The grade is written in kinematic units because that is what the capillary test measures, but a pump's viscosity correction factor and a bearing's drag torque both need the dynamic value: μ is what multiplies the velocity gradient to give shear stress. At 87.5 cP the oil is roughly 87 times thicker than water in exactly the sense the pump feels.

Deciding whether a pipeline runs laminar or turbulent. The Reynolds number, Re = v·D/ν, takes kinematic viscosity with no density in sight, because ρ has already cancelled between the inertial and viscous terms. Push a 20 cSt fuel oil down a 0.5 m line at 2 m/s and Re is 50,000 — turbulent, so pressure drop scales with roughly the square of the speed. Water in the same pipe at the same speed, at 1 cSt, gives Re of 1,000,000. Converting to centipoise first would be wasted effort.

Comparing air with water. Air at 20 °C has a kinematic viscosity of about 15 cSt and a density of about 1.2 kg/m³. Enter those and solve for μ: the tool gives 1.8×10-5 Pa·s, which is 0.018 cP. So air's kinematic viscosity is about 15 times larger than water's, while its dynamic viscosity is about 55 times smaller. Momentum spreads through air more readily, yet the shear force on a surface moving through it is far weaker. Which number you need depends on the question, and swapping them is the most common viscosity mistake.
